Automatic Butt Fusion Welding Machine CW 180

Preprogramming parameters

1. 21An internationally recognized welding standard Including the specified content: heating plate temperature, welding pressure, heat absorption time and cooling time

2. data management system

3. diagnostic routine

Integrated welding standards: GIS/WIS/TSG/UKWIR, customizable as needed.

- Large memory capacity: Stores at least 5,000 welding records, expandable via configuration.

- Supports external SD cards for data backup, ensuring dual protection against data loss.

- 7-inch high-brightness display with optional touchscreen configuration.

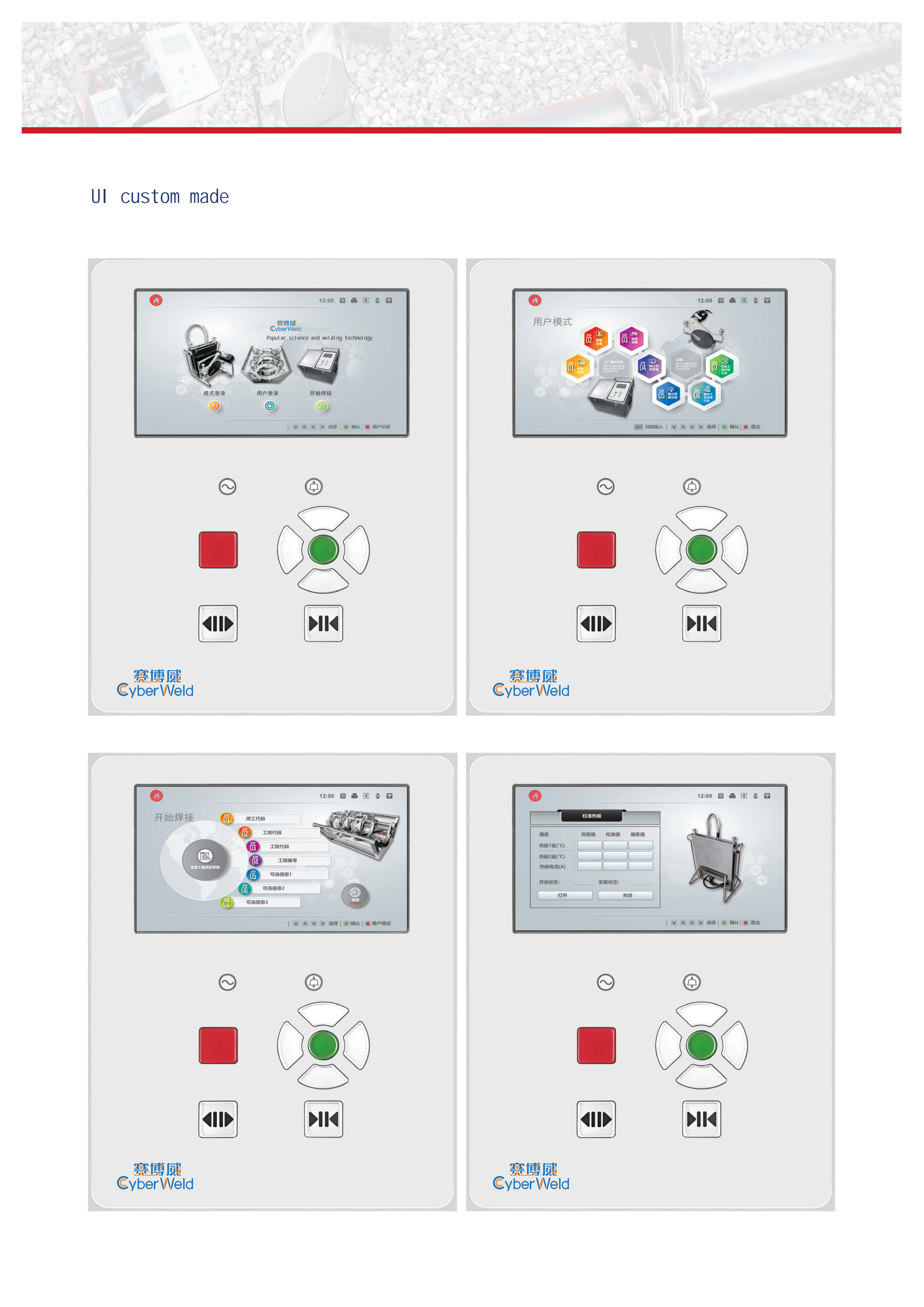

- Classic and visual UI interface styles, selectable based on preference.

- Multilingual system support.

- High-reliability hydraulic pump station and real-time precision control module.

- Integrated Bluetooth, fingerprint recognition, USB, and 4G communication modules.

- Supports Bluetooth printing and data upload.

- Enables interaction with mobile apps for welding control, on-site photo capture, and remote transmission to servers.

Packing: Up to exportation level plywood case for machines, standard carton for minor parts.Customized metal sheet box optional.

Shipping: Standard Ocean,land and air shipping available. Our professional can help you quickly decide delivery choice.

FEI is a leading innovator in the production of high-performance welding equipment,strategically headquartered near Shanghai, China. With proximity to major global shipping hubs, we ensure efficient logistics and seamless delivery to clients worldwide. As a technology-driven enterprise specializing in plastic pipeline welding solutions, the company integrates global advanced technologies to develop and manufacture a comprehensive range of equipment including Automatic Butt Fusion.

Butt Fusion Welder Automatic

PP Pipe Butt Fusion Welder

HDPE Butt Fusion Welder 5.0 kVA

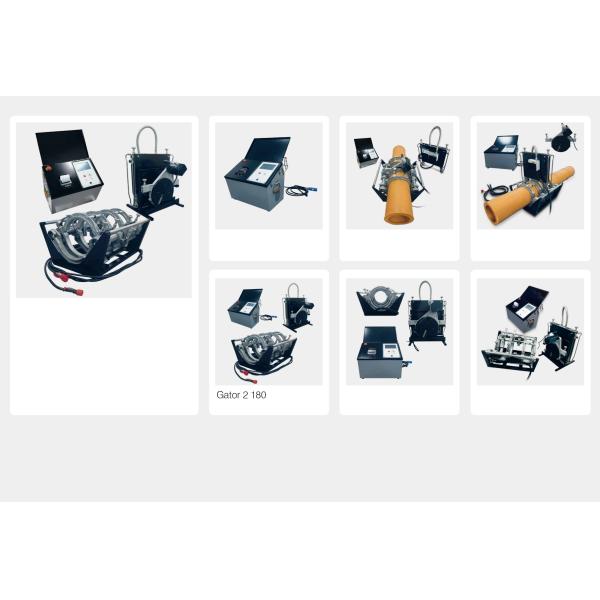

HDPE PP Pipe Butt Fusion Welder Automatic 5.0 kVA 63mm - 180mm Welding Diameter Images
